Home > Products > Dot Peen And Scribe Marking > In-line Pneumatic Dot Peen Marking Machine > Automatic Motorcycle Frame Ball Marking Machine





View the big picture

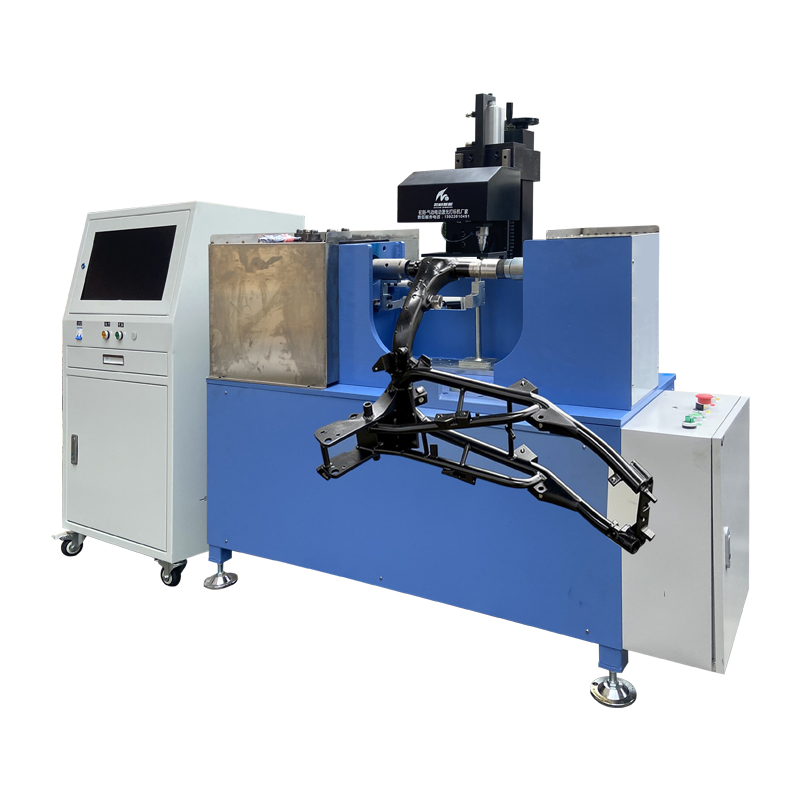

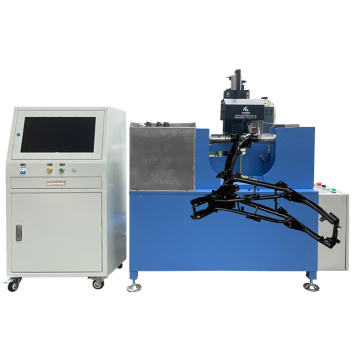

Automatic Motorcycle Frame Ball Marking Machine

Payment Type:	L/C,T/T,D/P,D/A,Paypal
Incoterm:	FOB,CFR,DDU,Express Delivery,CIF,FAS,DES,DAF,EXW,FCA,CPT,DEQ,CIP,DDP
Min. Order:	1

Contact Now

Add to Basket
Share to:

Basic Info

Model No.: Automatic Motorcycle Frame Ball Hydraulic Pressing Buttering VIN Marking Machine

Brand: Zixu

Marking Type: Pneumatic dotting

Marking Speed: 2-5 characters (2x2mm)/s

Marking Depth: 0.01 ~ 1.2mm (Vary to the material)

Marking Contents: English letter, number, Data Matrix codes, shift codes, serial number, date, time, Logo, graphics, etc.

Stylus Pin Hardness: HRA93

Marking Area: 140mm * 80mm

Marking Materials: Below HRC60 metallic and nonmetallic materials

Repeat Accuracy: 0.02 ~ 0.04mm

Rated Power: 120L/min

Air Consumption: 2400W

Power Input: 360 ~ 440VAC @ 50Hz/60Hz

Control Software: Thorx-7, Thorx-9 or Kingmark-8

Controller: 7'' or 10.1'' touchscreen control cabinet

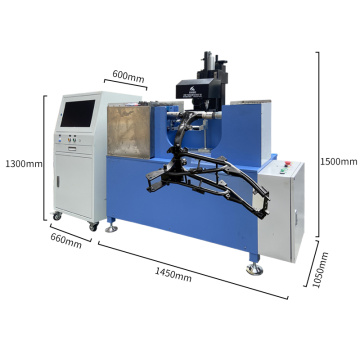

Dimensions: 1450 * 1050 * 1500mm & 660 * 600 * 1300mm

N.W.: 210kg

Additional Info

Packaging: Wood carton,2150 * 1200 * 1830mm,250kg

Transportation: Ocean,Express

Place of Origin: China

Payment Type: L/C,T/T,D/P,D/A,Paypal

Incoterm: FOB,CFR,DDU,Express Delivery,CIF,FAS,DES,DAF,EXW,FCA,CPT,DEQ,CIP,DDP

Product Description

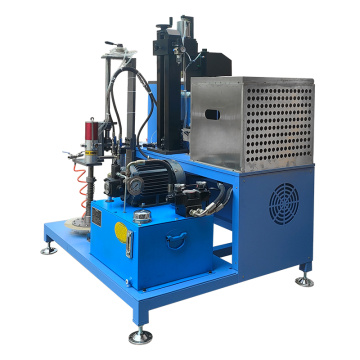

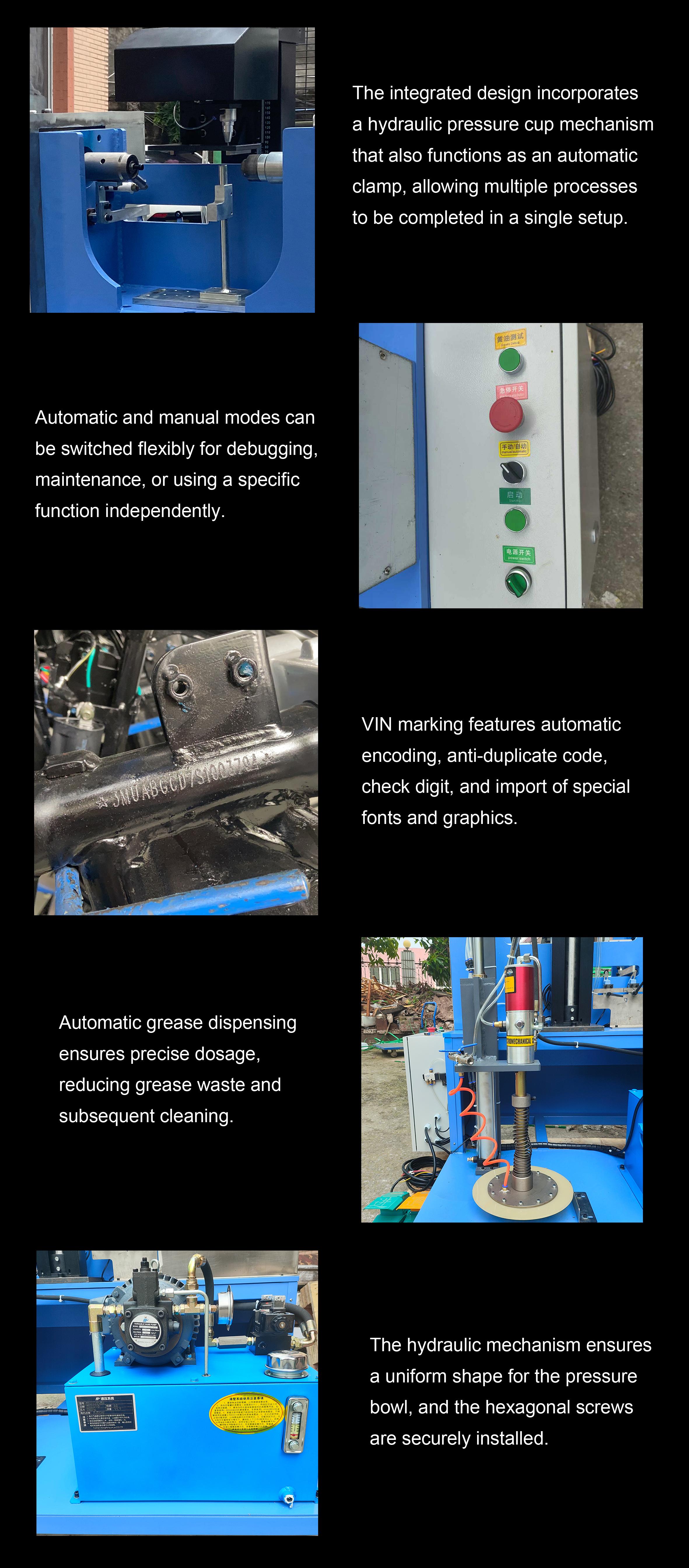

This integrated machine for motorcycle frame and fork cup holder pressing, grease application, and VIN marking combines the three major processes of cup holder pressing, grease application, and permanent marking into a single compact Marking Machine, achieving true one-stop integration of these three processes for the frame and fork.

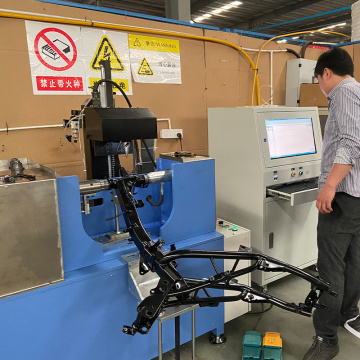

After the frame is manually installed onto the side clamp and secured, the machine automatically performs cylinder clamping, cup holder pressing, grease application, and VIN marking in approximately 30 seconds. Compared to traditional three separate workstations, this significantly reduces the time wasted on manual operations such as frame handling, positioning, and securing, increasing production efficiency by more than 10 times.

This machine is currently in use by several mainstream motorcycle and tricycle brands in China, Southeast Asia, and Eastern Europe, supporting the daily travel of hundreds of millions of people.

Finally, the VIN code marking unit can be freely switched according to the material and production line planning—the aluminum alloy frame uses a Laser Marking Machine, where a 20 W fiber laser burns a high-contrast QR code on the anodized surface in 3 seconds; the steel frame switches to a Dot Peen Marking Machine, where a high-frequency tungsten steel needle strikes out characters and numbers that are traceable for life at a depth of 0.4 mm, with the overall cycle time stable at 30 seconds.
