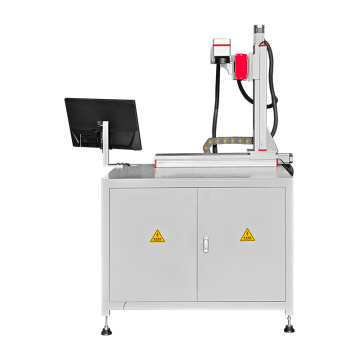

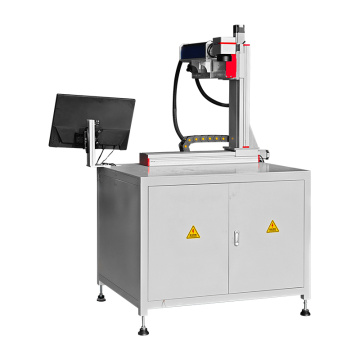

Desktop 3 Axis Moving Module MOPA Fiber Laser Marking Machine
Desktop 3 Axis Moving Module MOPA Fiber Laser Marking Machine
Desktop 3 Axis Moving Module MOPA Fiber Laser Marking Machine
Desktop 3 Axis Moving Module MOPA Fiber Laser Marking Machine
Desktop 3 Axis Moving Module MOPA Fiber Laser Marking Machine
Desktop 3 Axis Moving Module MOPA Fiber Laser Marking Machine
  • Desktop 3 Axis Moving Module MOPA Fiber Laser Marking Machine
  • Desktop 3 Axis Moving Module MOPA Fiber Laser Marking Machine
  • Desktop 3 Axis Moving Module MOPA Fiber Laser Marking Machine
  • Desktop 3 Axis Moving Module MOPA Fiber Laser Marking Machine
  • Desktop 3 Axis Moving Module MOPA Fiber Laser Marking Machine
  • Desktop 3 Axis Moving Module MOPA Fiber Laser Marking Machine
View the big picture

Desktop 3 Axis Moving Module MOPA Fiber Laser Marking Machine

    Payment Type: Paypal,D/A,D/P,T/T,L/C
    Incoterm: FOB,Express Delivery,CFR,CIF,DAF,EXW,DES,FAS,FCA,CPT,CIP,DEQ,DDP,DDU
    Min. Order: 1

Basic Info

Model No.: Desktop 3 Axis Moving Module MOPA Fiber Laser Marking Machine

Brand: Zixu

Origin: china

Laser Type: MOPA Fiber

Laser Brand: JPT, GZTech, MAX or customize

Laser Power: 50W, 100W, 200W, 300W or customize

Work Area: 150 * 150mm or customize

Motion Travel: 500 * 400 * 300mm or customize

Laser Wavelength: 1065 ± 10nm

Beam Quality (BBP): ≤ 1.6㎡

Energy Per Pulse: ≤ 1.5mJ

Pulse Duration: 2 ~ 500ns

Frequency: 1 ~ 4000kHz

Positioning Speed: 8000 ~ 23000mm/s

Scanning Speed: 5000 ~ 12000mm/s

Writing Speed: 450 ~ 600cps

Repeat Accuracy: ± 0.002mm

Motion Control: Customize X, Y and Z axis servo motor moving module

Laser Lifespan: ≥ 100,000hrs

Cooling Method: Air cooling

Power Input: 100 ~ 240VAC @ 50 / 60 Hz

Operation Temperature:: 10 ~ 40℃ or 50 ~ 104℉

Storage Temperature:: -10 ~ 60℃ or 14 ~ 140℉

Relative Humidity:: 5 ~ 75%, no condensation

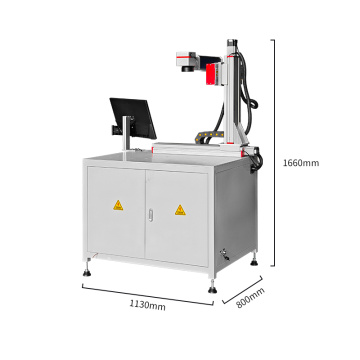

Dimensions: 1130 * 800 * 1660mm

N.W.: 140kg

Additional Info

Packaging: Wood carton,1250 * 900 * 1900mm,166kg

Transportation: Ocean,Express

Place of Origin: china

Payment Type: Paypal,D/A,D/P,T/T,L/C

Incoterm: FOB,Express Delivery,CFR,CIF,DAF,EXW,DES,FAS,FCA,CPT,CIP,DEQ,DDP,DDU

Product Description

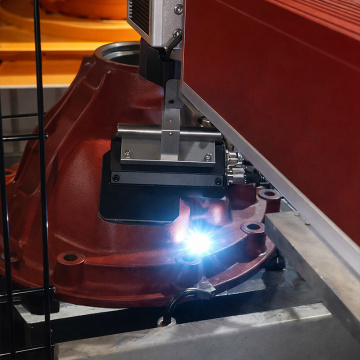

This X-Y-Z three-axis MOPA Fiber Laser Marking Machine employs a 500*400*300mm mobile module and features a human-workpiece separation design tailored to the client's actual usage scenarios. The client possesses proprietary tooling and advanced automation deployment capabilities, so we omitted conventional aluminum or steel workbenches in the work area, instead pre-drilling screw holes according to the client's tooling drawings. The MOPA Fiber Laser Marking Machine can connect to the client's MES system and execute automated tasks via commands issued by their proprietary PLC. The PLC directs the conveyor belt to feed materials, then controls pneumatic tooling for clamping and positioning before initiating marking. Upon completion, the MOPA Fiber Laser Marking Machine sends a signal back to the PLC for unloading and continuous cycling, enabling 7*24-hour uninterrupted fully automated marking. The display and operation interface are located opposite the work area, allowing production engineers to monitor working status or adjust parameters while preventing personnel from entering hazardous zones.
?
