Home > Products > Dot Peen And Scribe Marking > Dot Peen Marking Machine For Flange & Valve > Handheld Flange Deep Dot Peen Marking Machine 150x80mm G03





View the big picture

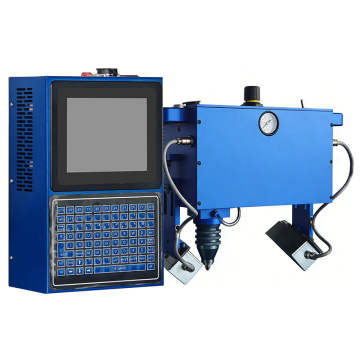

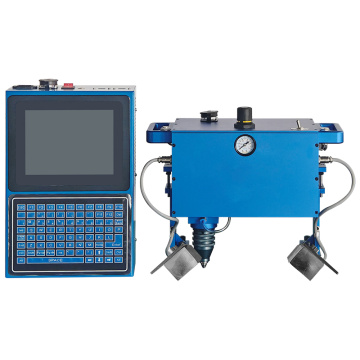

Handheld Flange Deep Dot Peen Marking Machine 150x80mm G03

Payment Type:	L/C,T/T,D/P,D/A,Paypal
Incoterm:	FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES
Min. Order:	1

Contact Now

Add to Basket
Share to:

Basic Info

Model No.: Handheld Flange Deep Dot Peen Marking Machine 150x80mm G03

Brand: Zixu

Origin: China

Marking Type: Pneumatic dotting

Marking Speed: 2-5 characters (2x2mm)/s

Marking Depth: 0.5 ~ 2mm (Vary to the material)

Marking Contents: English letter, number, Data Matrix codes, shift codes, serial number, date, time, Logo, graphics, etc.

Stylus Pin Hardness: HRA93

Marking Area: 150mm * 80mm

Marking Materials: Below HRC60 metallic and nonmetallic materials

Repeat Accuracy: 0.02 ~ 0.04mm

Rated Power: 300W

Power Input: 100 ~ 240VAC @ 50 / 60Hz

Control Software: Thorx-6

Controller: 7 inches touchscreen controller

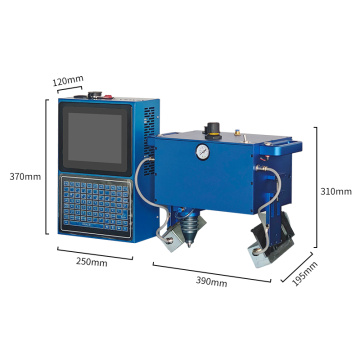

Dimensions: 390 * 195 * 310mm & 250 * 120 * 370mm

N.W.: 19.5kg

Additional Info

Packaging: Wood carton,600 * 440 * 420mm,26kg

Transportation: Ocean,Express

Place of Origin: China

Payment Type: L/C,T/T,D/P,D/A,Paypal

Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES

Product Description

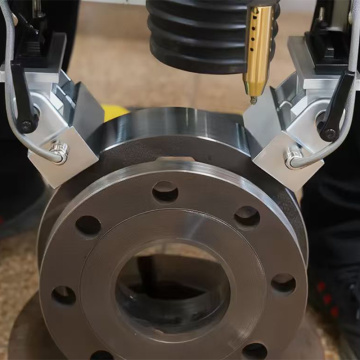

One of our clients, located in Wuxi, Jiangsu, specializing in flange and valve Marking Equipment, requested a handheld depth marker to supplement their product line. This marker is primarily used to mark installation dates and Other information on installed large valve bodies and connecting flanges. To address this, we modified our best-selling G03 Marking Machine with an adjustable-angle electromagnet Fixture. Under air pressure of 0.6~0.8MPa, this machine can achieve a single-stroke marking depth of 0.5~0.8mm on common steel flanges and valve bodies, and a marking depth of 0.7~1.5mm on cast iron, copper, and aluminum materials. Even after re-spraying with anti-rust paint or electroplating, excellent marking visibility is maintained.
