Home > Products > Laser Cutting Machine > Precision Fiber Laser Cutting Machine > 6000W Water Cooling Enclosed Precision Laser Cutting Machine

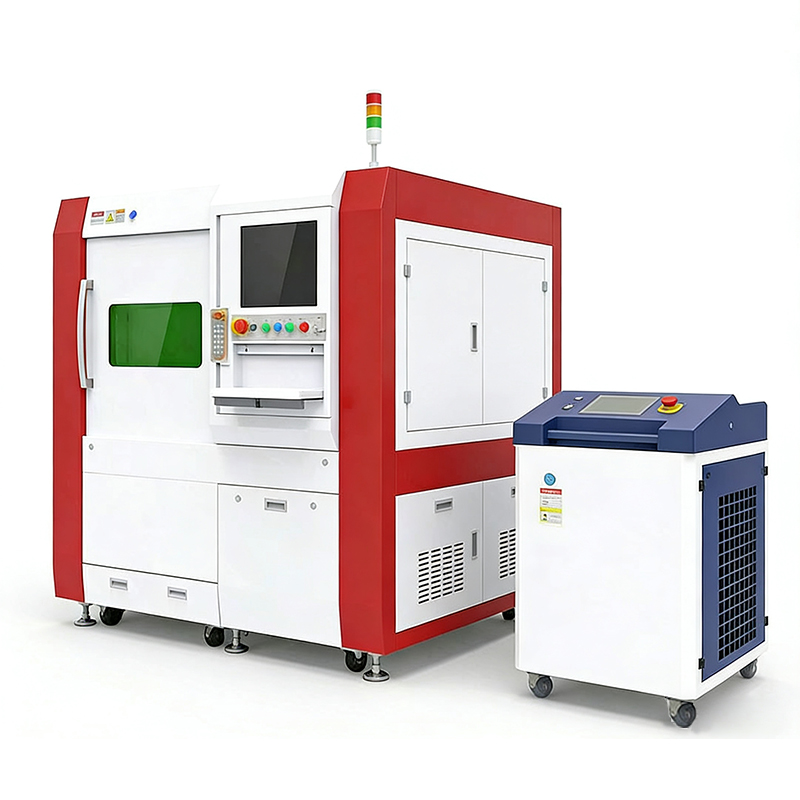

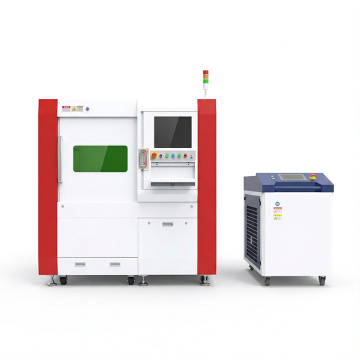

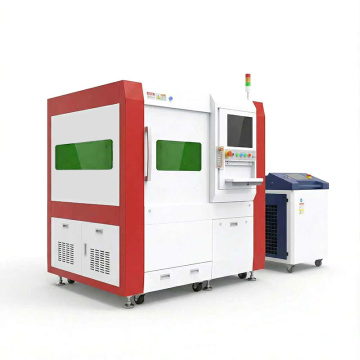

6000W Water Cooling Enclosed Precision Laser Cutting Machine
6000W Water Cooling Enclosed Precision Laser Cutting Machine
6000W Water Cooling Enclosed Precision Laser Cutting Machine
6000W Water Cooling Enclosed Precision Laser Cutting Machine
6000W Water Cooling Enclosed Precision Laser Cutting Machine
6000W Water Cooling Enclosed Precision Laser Cutting Machine
  • 6000W Water Cooling Enclosed Precision Laser Cutting Machine
  • 6000W Water Cooling Enclosed Precision Laser Cutting Machine
  • 6000W Water Cooling Enclosed Precision Laser Cutting Machine
  • 6000W Water Cooling Enclosed Precision Laser Cutting Machine
  • 6000W Water Cooling Enclosed Precision Laser Cutting Machine
  • 6000W Water Cooling Enclosed Precision Laser Cutting Machine
View the big picture

6000W Water Cooling Enclosed Precision Laser Cutting Machine

    Payment Type: L/C,T/T,D/P,D/A,Paypal
    Incoterm: FOB,DDU,CFR,Express Delivery,CIF,EXW,DAF,FAS,DES,FCA,CPT,CIP,DEQ,DDP
    Min. Order: 1

Basic Info

Model No.: 6000W Enclosed Precision Laser Cutting Machine

Brand: Zixu

Laser Type: Fiber

Laser Brand: MAX, Raycus or customize

Laser Power: 6000W

Laser Wavelength: 1070±10nm

Work Area: 1200 * 1200mm or customize

Cooling Method: Water cooling

Power Input: 360 ~ 440VAC @ 50 / 60 Hz

Operation Temperature:: 10 ~ 40℃ or 50 ~ 104℉

Storage Temperature:: -10 ~ 60℃ or 14 ~ 140℉

Relative Humidity:: 10 ~ 80%, no condensation

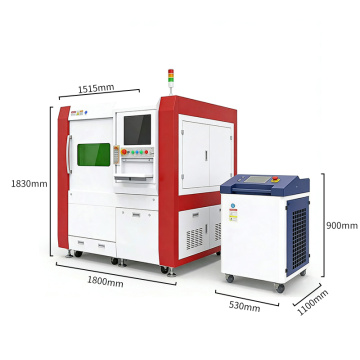

Dimension: 1800 * 1515 * 1830mm & 770 * 550 * 1030mm

N.W.: 1310kg

Additional Info

Packaging: Wood carton,1930 * 1620 * 2070mm & 780 * 650 * 1170mm,1380kg

Transportation: Ocean,Express

Place of Origin: China

Payment Type: L/C,T/T,D/P,D/A,Paypal

Incoterm: FOB,DDU,CFR,Express Delivery,CIF,EXW,DAF,FAS,DES,FCA,CPT,CIP,DEQ,DDP

Product Description

?

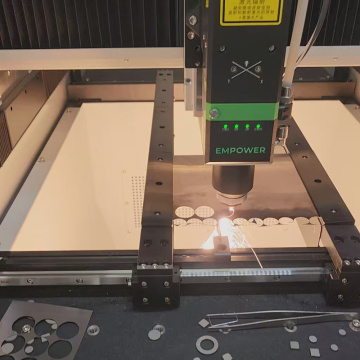

This enclosed precision Laser Cutting Machine is equipped with a Raycus or MAX 6000 W water-cooled CW laser. With its extremely high instantaneous energy density, it can achieve "cold-state" precision cutting and micro-hole processing on stainless steel, carbon steel, aluminum, copper, and even metal foils/films smaller than 0.1 mm—gold foil, copper foil, and aluminum film are completed instantly, without scorching or edge curling. Compared to traditional gantry-type large-format laser cutting machines, its differences lie in three key advantages:
?
All three axes use high-acceleration servo motors instead of stepper motors, combined with path optimization algorithms, resulting in an overall cutting efficiency improvement of over 40%;
?
Micron-level stopping precision allows precision parts to be directly used without secondary polishing;
?
The same Laser Source can be switched to Laser Marking Machine mode with a single click: QR codes, batch numbers, or logos are projected onto the cutting contour edge, achieving "cut first, mark later" in one stop, saving the time of transporting to a separate Marking Machine.
?
If only a shallow traceability code is required, a Pneumatic marking machine sub-shaft can be added to create a permanent mark with a depth of ≤0.02 mm on the edge of the foil using a micro-impact needle, without damaging the surface coating.
?
Fiber Optic Cutting Machine
?

Product Categories : Laser Cutting Machine > Precision Fiber Laser Cutting Machine
